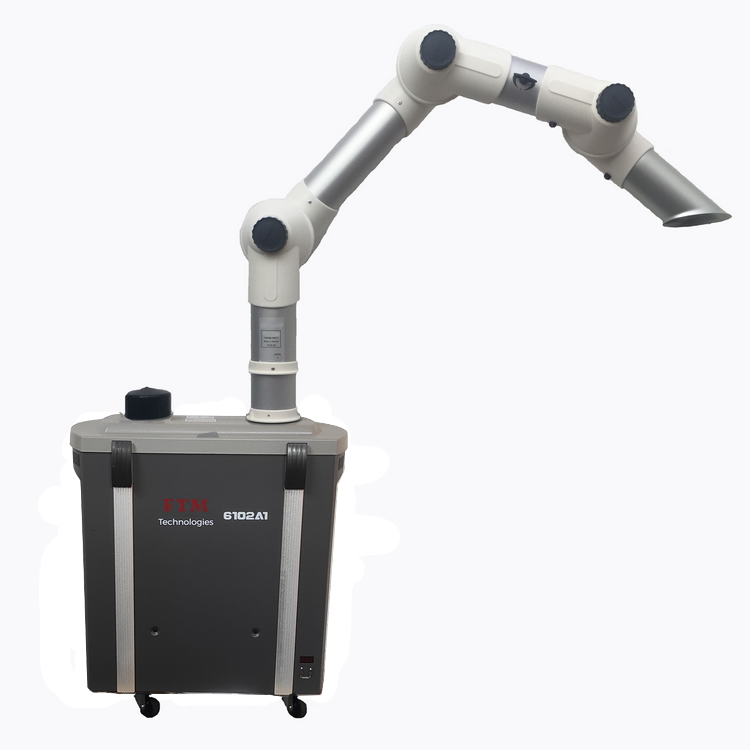

HI-HEPA nozzle mobile filtration system
HI-HEPA suction box mounted on wheels for greater mobility, equipped with an ME75 laboratory arm and a spout nozzle.
Allows capture as close as possible to the point of emission.
2 inlets with a diameter of 75 mm – Filters and arm 1000 mm included
Use:
– Multi-station filtration for welding or other fumes
– Applications of solvents with a cloth or brush
– Capture of small dust particles with the grinding wheel
– Connections on various machines emitting solvents or fumes, such as digital printing machines, electromechanical machines, etc.
Specificities:
– The filtration system includes a very high efficiency HEPA filter and a gas filter
– Alarm system for filter change indication
– Regulation of the suction flow by remote control
The HEPA filter will indeed remove fumes and particles while the gas filter, thanks to the properties of activated carbon, will remove harmful gases.
Do not hesitate to contact us for any additional information or advice
Filtration: Prefilter / Particulate filter / HEPA H13 filter: allows a maximum of 0.05% of 0.1 micron particles to pass through / activated carbon filter
Power: 250 W
System flow rate with filter: 2 x 100 m3 / h
Noise: 54 dB at 150 m³ / h
Dimensions: 470 x 230 x 500 mm (without the arm)
Arm length: 1000 mm (without nozzle)
Weight: 16 kg
Maintenance : Periodic Filter Change
Rear Exit Evac : No
78 Rue Raymond Poincaré
92000 Nanterre – FRANCE
Tél. +33(0)1 40 86 00 09

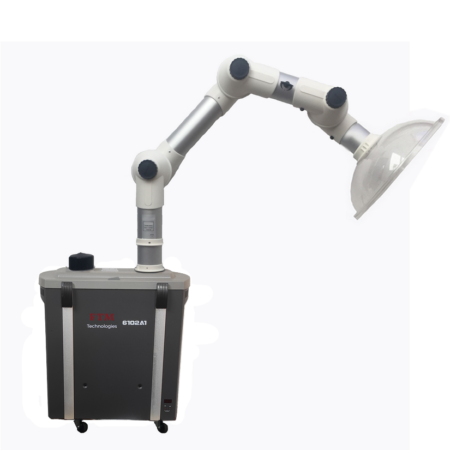

Rolling trolley HEPA hood
